منذ قليل اعلنت شركة ميكروتيك
عن دخولها عالم التردد 5 جيجا هيرتز بقوة
سنعود من ثانية لامجاد التردد 5 جيجا هيرتز
نشاهد التقرير عن المنتجات
(1) NetMetal 5
This RB922UAGS-5HPacD-NM version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas

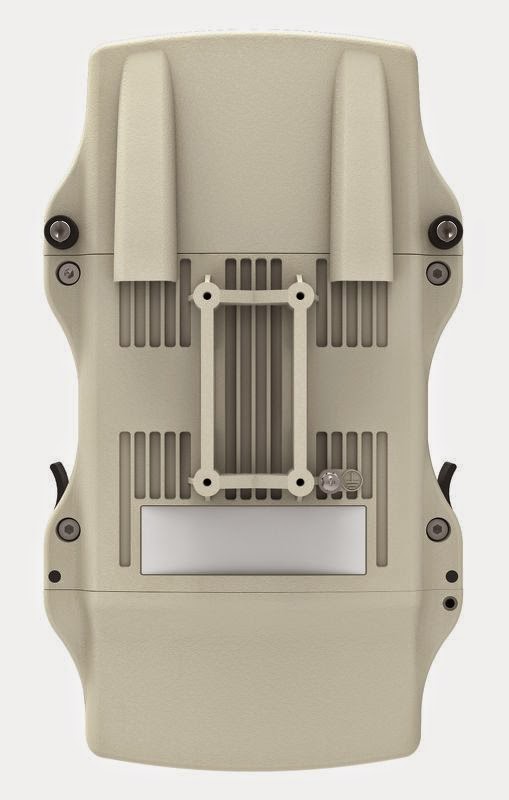

The NetMETAL is a completely new 802.11ac product in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for its high output power radio.
The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.
The NetMETAL is a completely new 802.11ac product in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for its high output power radio.
The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.
Product specifications
Details
Product code RB922UAGS-5HPacD-NM
SFP DDMI yes
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 128 MB
10/100 Ethernet ports None
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 1
Wireless chip model QCA9882-BR4A-R
Wireless standards 802.11ac
Number of USB ports 1
Power Jack 0
802.3af support no
Supported input voltage 8 V - 30 V
PoE out No
PoE in Yes
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
Dimensions 143x247x48mm (PCB)
Operating System RouterOS
License level 4
Antenna gain DBI No
Current Monitor No
CPU QCA9557-AT4A-R
Max Power consumption 17 W
SFP ports 1
SFP+ ports None
USB slot type USB type A
Number of chains 2
Serial port None
Suggested price $149.00
Details
Product code RB922UAGS-5HPacD-NM
SFP DDMI yes
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 128 MB
10/100 Ethernet ports None
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 1
Wireless chip model QCA9882-BR4A-R
Wireless standards 802.11ac
Number of USB ports 1
Power Jack 0
802.3af support no
Supported input voltage 8 V - 30 V
PoE out No
PoE in Yes
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
Dimensions 143x247x48mm (PCB)
Operating System RouterOS
License level 4
Antenna gain DBI No
Current Monitor No
CPU QCA9557-AT4A-R
Max Power consumption 17 W
SFP ports 1
SFP+ ports None
USB slot type USB type A
Number of chains 2
Serial port None
Suggested price $149.00
(2) mANT30
mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.
Note: Basebox wireless device pictured for illustrative purposes. It is not included
Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.
Note: Basebox wireless device pictured for illustrative purposes. It is not included
Product specifications
Details
Product code MTAD-5G-30D3
Antenna gain DBI 30dbi
Frequency Range 4.7-5.875 GHz
Polarization Vertical and Horizontal
Beamwidth 3 deg
VSWR ≤ 1.4 typ, ≤ 1.8 max
Port to Port Isolation >40dB min
Front-to-Back Ratio >30 dB
Cross Polarization >40 dB
Power Rating 100W
Impedance 50 ohms
Elevation adjustment range +/- 20 deg
Diameter x Depth 70 x 45cm (27.5 x 17.8in)
Weight 4.8kg (10.7 lbs)
Reflector Aluminum
Outdoor Rating ETSI EN 300 019-2-4
Standards EN 302 326 DN1, DN2, DN3, DN5
Wind Survivability 201kph (125mph)
Wind Load (125 mph) 181.4kg (400 lbs)
Operating Temperature -50°C to 80°C(-49°F to 158°F)
Pole Mount Diameter Range 3 to 7cm (1.2 to 2.75in)
Connector 2x RP-SMA Female (outside thread)
Packaged size 73x73x20cm (29x29x8in)
Packaged weight 7.5 kg (16.5 lbs)
Suggested price $119.00
(3) mANT30 PA
mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.
Note: Basebox wireless device pictured for illustrative purposes. It is not included
Product specifications
Details
Product code MTAD-5G-30D3-PA
Antenna gain DBI 30dbi
Frequency Range 4.7-5.875 GHz
Polarization Vertical and Horizontal
Beamwidth 3 deg
VSWR ≤ 1.4 typ, ≤ 1.8 max
Port to Port Isolation >40dB min
Front-to-Back Ratio >30 dB
Cross Polarization >40 dB
Power Rating 100W
Impedance 50 ohms
Elevation adjustment range +/- 15 deg
Diameter x Depth 70 x 45cm (27.5 x 17.8in)
Weight 5.7kg (12.6 lbs)
Reflector Aluminum
Outdoor Rating ETSI EN 300 019-2-4
Standards EN 302 326 DN1, DN2, DN3, DN5
Wind Survivability 201kph (125mph)
Wind Load (125 mph) 181.4kg (400 lbs)
Operating Temperature -50°C to 80°C(-49°F to 158°F)
Pole Mount Diameter Range 3 to 10cm (1.2 to 3.9in)
Connector 2x RP-SMA Female (outside thread)
Packaged size 73x73x20cm (29x29x8in)
Packaged weight 8.4 kg (18,5)
Suggested price $129.00
باذن الله اول مالاجهزة تنزل مصر هاجيبها ونبرمجها ونقيمها
تحياتى لكم
شادى سوفت
